Vitrified Clay Pipe Chart

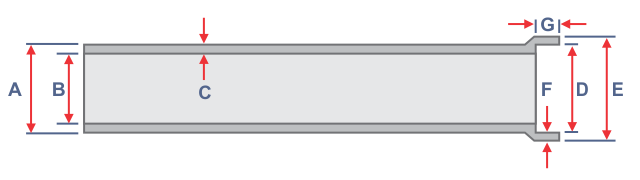

Pipe Size (B)	OD (A)	WALL (C)	BELL (D)
4	5.3125	0.6875	6.5
6	7.87	7.87	9.05
8	10.02	0.98	11.49
10	12.47	1.1	14.07
12	14.52	1.26	15.96
15	18.3	1.71	20.3
18	21.87	2.03	23.9
21	25.78	2.36	27.78
24	28.85	2.47	30.78
27	32.77	2.99	34.92
30	36.06	3.13	38.26
33	39.52	3.23	41.74
36	43.01	3.68	45.77
39	46.42	3.66	49.66
42	50.17	4.06	53.18

Pipe Size (B)	LENGTH	Wt Linear Ft	gal/ft
4	1′, 2′, 4′	11	0.653
6	1′, 2′, 6′	21	1.469
8	1′, 2′, 6′	30	2.611
10	1′, 2′, 6′	44	4.08
12	1′, 2′, 6′	54	5.875
15	1′, 2′, 6′	90	9.18
18	1′, 2′, 6′	141	13.219
21	1′, 2′, 6′	168	17.993
24	1′, 2′, 6′	230	23.501
27	1′, 2′, 6′	290	29.743
30	1′, 2′, 6′	333	36.72
33	1′, 2′, 6′	415	44.431
36	1′, 2′, 6′	445	52.877
39	1′, 2′, 5.5′	540	62.057
42	1′, 2′, 5.5′	603	71.971

Pipe Size (B)	BELL OD €	BELL LENGTH (G)	BELL WALL (F)
4	7.625	1.5	0.5
6	10.43	2.33	0.67
8	13.09	2.31	0.78
10	15.87	2.61	0.92
12	18.51	2.84	0.99
15	22.96	2.81	1.28
18	24.47	3.22	1.5
21	30.78	3.73	1.6
24	34.06	3.67	1.71
27	38.26	3.97	1.76
30	42.18	3.9	2.02
33	46.43	4.14	2.27
36	49.93	4.05	2.27
39	54.83	4.1	2.49
42	58.5	4.67	2.55
